TL-68 (-) Cylinder Lens Set

TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
Click image to zoom
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set
TL-68 (-) Cylinder Lens Set

TL-68 (-) Cylinder Lens Set

login to view price
SKU: TL-68 (-) Cylinder

Color
(Not available)

Short Description


trial lens set tl-68 menos Luxvision

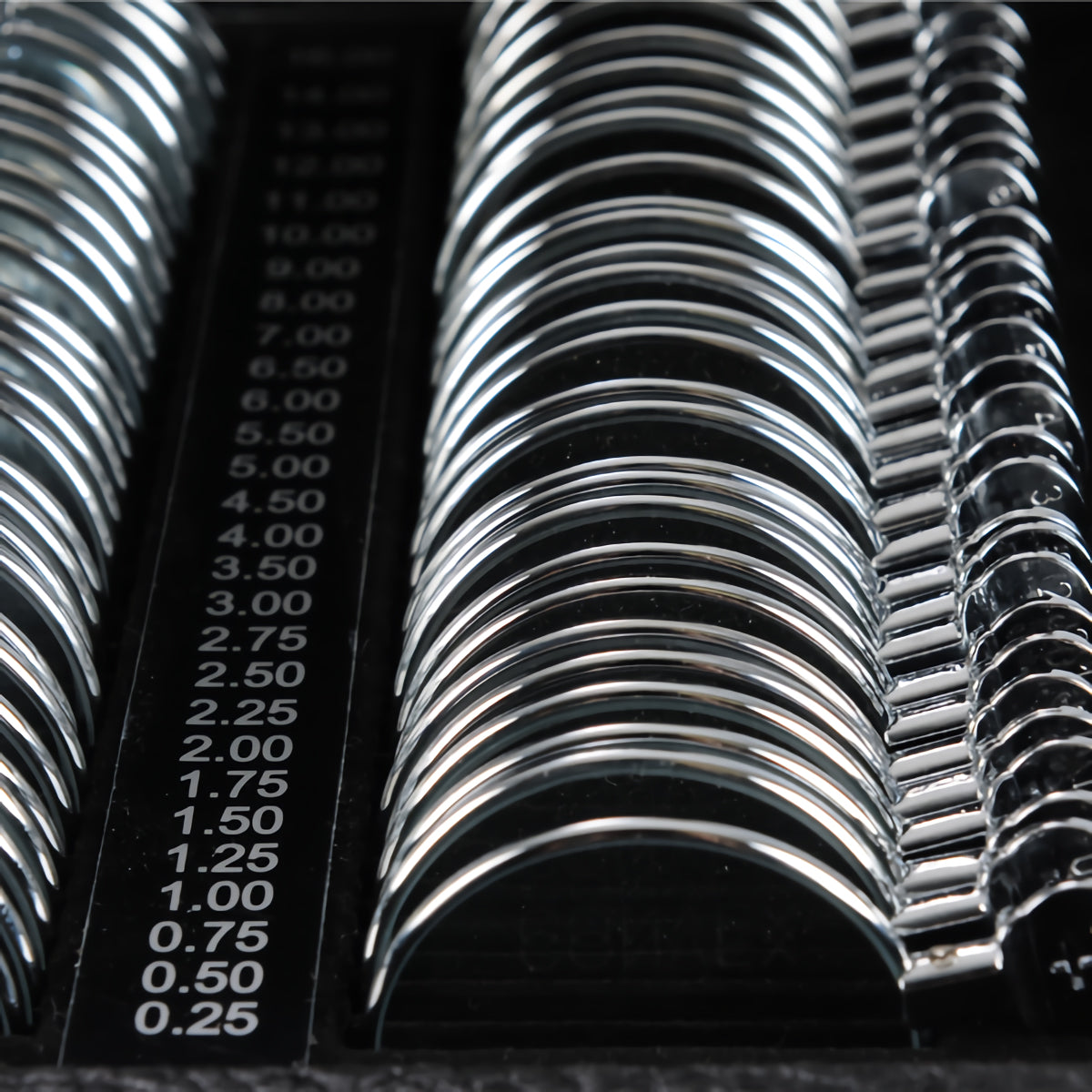

 Spheres
The kit includes both concave (-) and convex (+) spherical lenses for performing testing on patients with myopia, hyperopia and presbyopia. Powers include ± 0.25D to ± 16.00D.

trial lens set tl-68 menos Luxvision

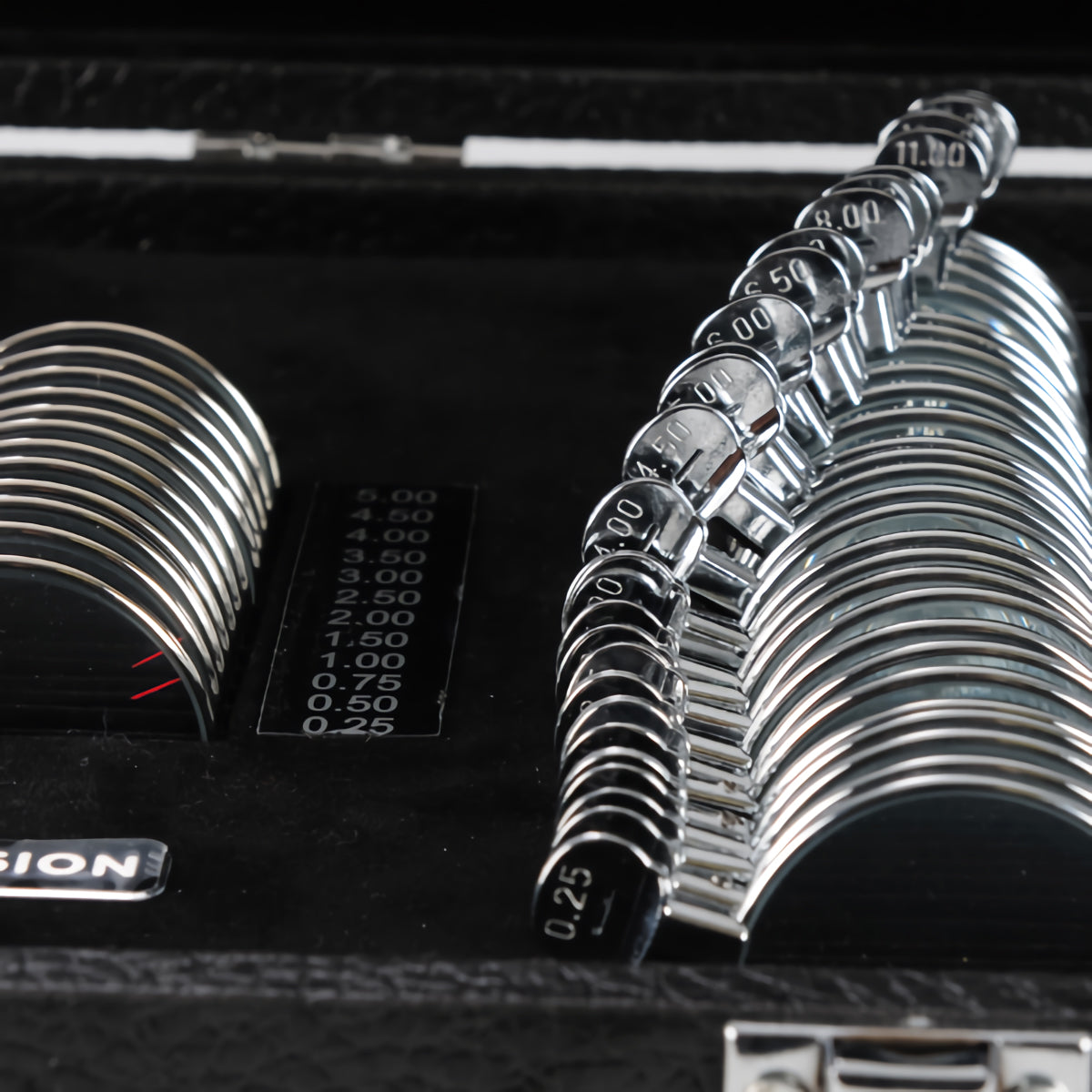

 Cylinders
Achieve the added flexibility you need when testing astigmatic patients. In addition to a spherical set, the Luxvision TL-68 (-) Cylinder lens kit offers 12 minus cylinders to help you obtain reliable visual fields and artifact-free results. Powers range from -0.25D to -5.00D.

trial lens set tl-68 menos Luxvision

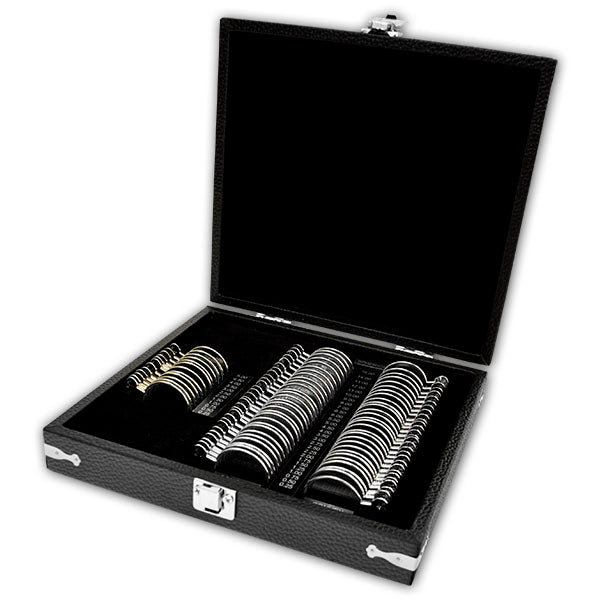

Security Case
The TL-68 (-) Cylinder Lens Set is offered in a leatherette case for safe, convenient storage.

Perimeter Trial Lens Set Selection

+ Spheres (One each) - Spheres (One each) + Cylinders or - Cylinders (One each)
16.00 16.00
14.00 14.00
13.00 13.00 5.00
12.00 12.00 4.50
11.00 11.00 4.00
10.00 10.00 3.50
9.00 9.00 3.00
8.00 8.00 2.50
7.00 7.00 2.00
6.50 6.50 1.50
6.00 6.00 1.00
5.50 5.50 .75
5.00 5.00 .50
4.50 4.50 .25
4.00 4.00
3.50 3.50
3.00 3.00
2.75 2.75
2.50 2.50
2.25 2.25
2.00 2.00
1.75 1.75
1.50 1.50
1.25 1.25
1.00 1.00
.75 .75
.50 .50
.25 .25

Spheres
The curved surface forms a part of the spherical lens and the dioptric power on all axis positions is the same. After passing through the lens, the light beam focuses on one point (or a virtual focus). Spherical lenses includes concave lenses (-) and convex lenses (+), which are used to examine myopia, hyperopia and presbyopia.

Cylinders
The curved surface forms a part of the cylindrical lens and the dioptric power on all axis positions is not the same. After passing through the lens, the light beam focuses into a straight line (or a broken line). Cylindrical lenses consists of concave cylindrical lenses and convex cylindrical lenses that are used to examine astigmatism.
Click here to see the manual


USO

Manufacturer: USO

Manufacturer SKU: TL-68 (-) Cylinder

Appropriate lens power is essential when performing perimetry. The Luxvision TL-68 (-) Cylinder Lens Kit offers 56 spherical lenses plus 12 minus cylinders to help you obtain reliable visual fields and artifact-free results. These full aperture designs are handcrafted with optically true centers. Each glass lens is encased in a metal ring and is offered in a leatherette case for safe, convenient storage. * Trial Frame not Included
