TF-35 Trial Frame

TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame
Click image to zoom
TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame
TF-35 Trial Frame

TF-35 Trial Frame

login to view price
SKU: TF-35

Color
(Not available)

Short Description


Trial Frame TF-35 luxvision - us ophthalmic
 Holds 4 Pairs of Lenses
The high quality TF-35 Trial Frame holds up to four lenses on each side.

Trial Frame TF-35 luxvision - us ophthalmic

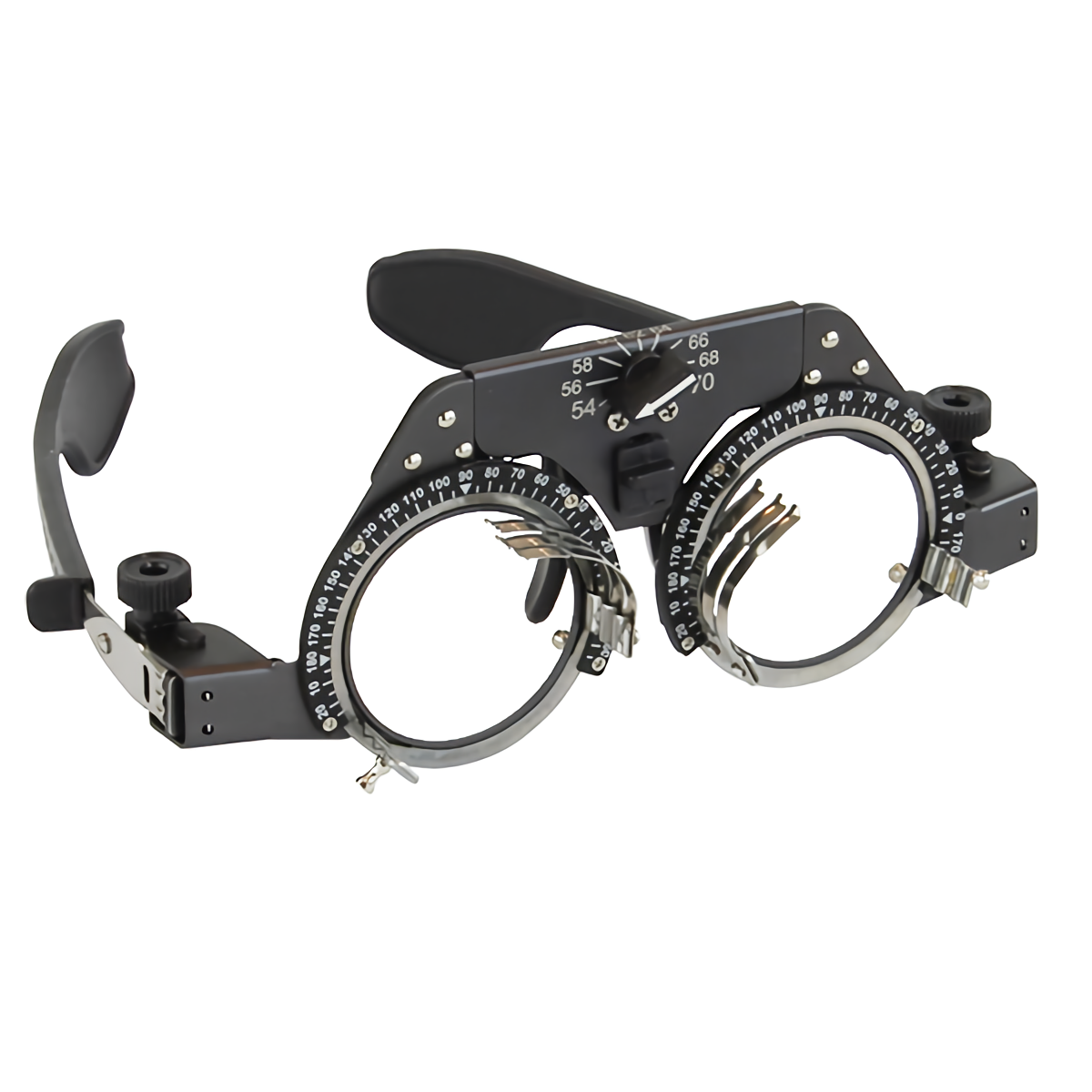

 PD Adjustment
Both left and right pupillary distances can be adjusted on the TF-35 Frame from 54mm to 70mm.

Trial Frame TF-35 luxvision - us ophthalmic

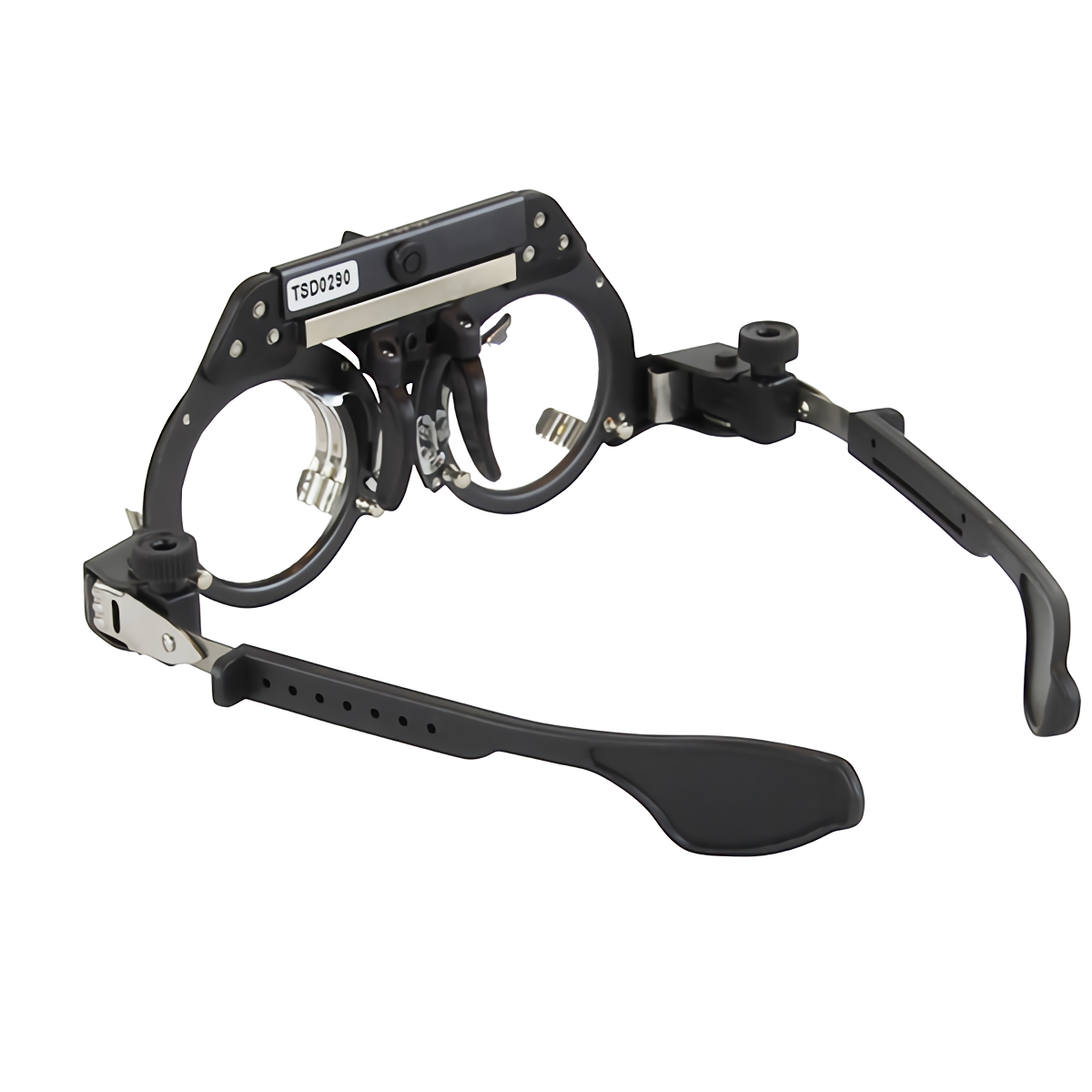

 Temple Adjustment
With the TF-35, you can ensure the best fit for an accurate trial prescription. Simply adjust the frame temple’s length by gently pulling on the adjustment part until it is in a comfortable position. Also, on the hinge of each temple, there is a frame temple angle adjustment knob that you can use to adjust the angle of the ear-hangers and ensure that the slanting angle of the trial frame is at about 15°.

Trial Frame TF-35 luxvision - us ophthalmic
 Nose Pad Adjustment
With the TF-35, you can even adjust the nose pad to best suit the patient’s bridge. Adjustment knobs allow you to adjust nose pad length and angle.

Trial Frame TF-35 luxvision - us ophthalmic
 Comfortable
The TF-35 trial frame features a soft ear rest for patient comfort.

Cylindrical and Prismatic Axis Adjustment
With the TF-35 trial frame, you can adjust the lens axis by rotating the astigmatic axis adjustment knob after the lenses are inserted.


Structure

Trial Frame TF-35 luxvision - us ophthalmic

How to use

Trial Frame TF-35 luxvision - us ophthalmic
1 - P.D. Adjustment
Turn the P.D. adjusting knob (PD adjusting knob) to adjust the P.D. This P.D. should be same as the patient's P.D. You can read the PD value on the panel, see the arrowhead' direction.


Trial Frame TF-35 luxvision - us ophthalmic
2 - Nose pad adjustment
According to the patient's nose, move the nose pad adjusting button (Pad adjusting button) to adjust the height of and turn (or slid) the nose pad(Nose pad) to adjust the width.


3 - Axis of astigmatism and strabismus
Insert the cylindrical or prismatic trial lens to spring piece, turn the knob (Revolving knob) attached to the rotatable cylinder holder with fingertip.


Trial Frame TF-35 luxvision - us ophthalmic

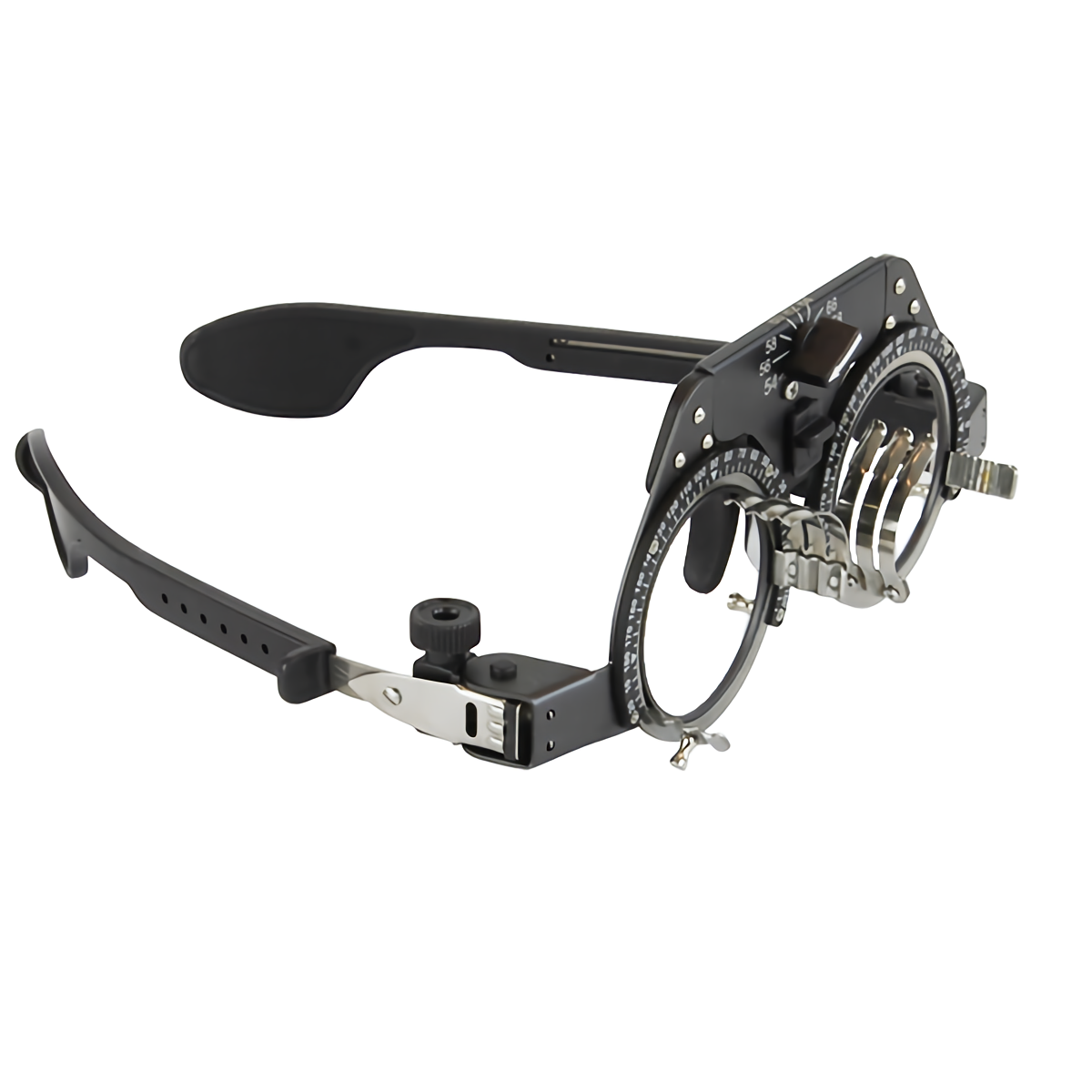

4 - Temple adjustment
Move the temple cover (Temple cover) to adjust the temple length and turn the temple-adjusting knob (Temple-adjusting knob) to adjust the temple angle.

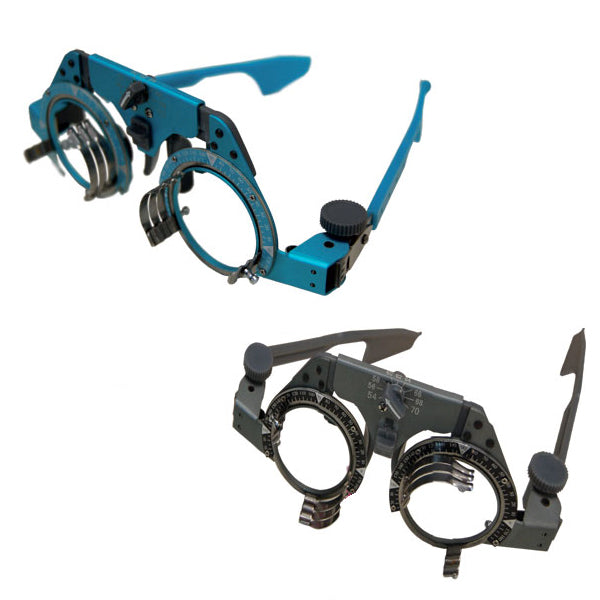

Colour Options


Trial Frame TF-35 luxvision - us ophthalmic

 Trial Frame TF-35 luxvision - us ophthalmic

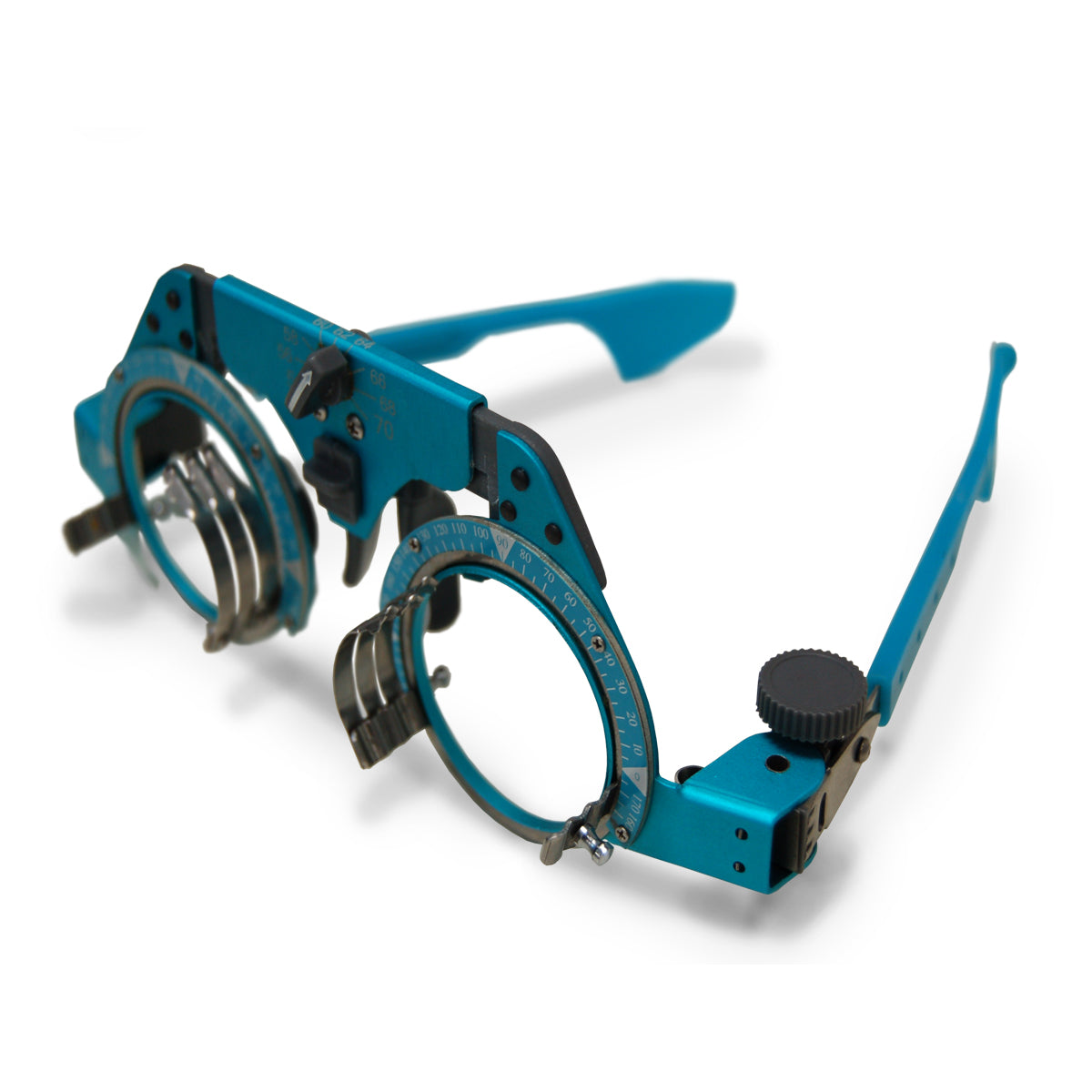

Colour: Blue

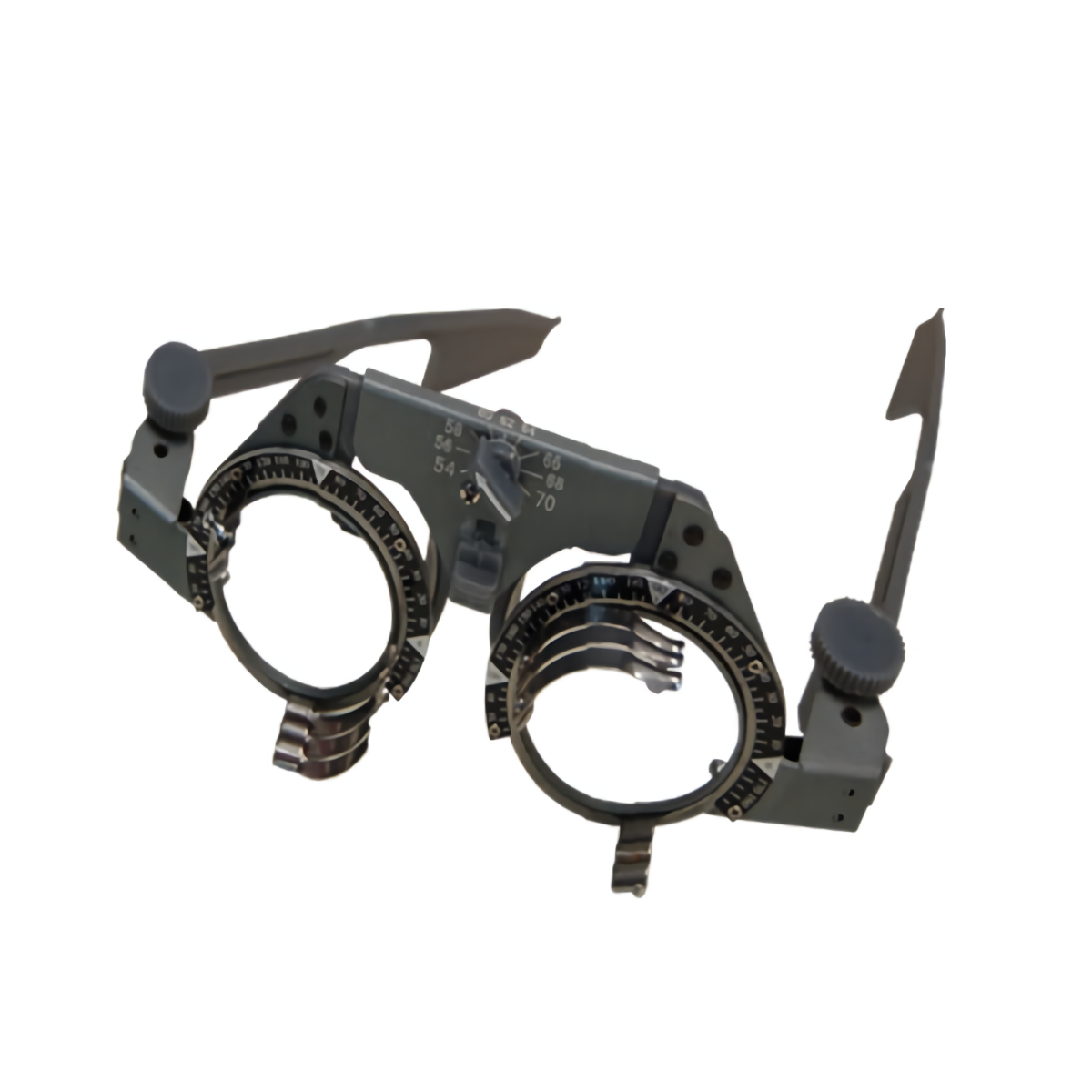

Colour: Silver

PD Scale 2.12 ~ 2.75 in (54 ~70 mm)
Weight 0.10lb (47g)
Accommodate up to Four 1.5in / 38mm trial lenses
Click here to see the manual


USO

Manufacturer: USO

Manufacturer SKU: TF-35

The TF-35 is the trial frame that ophthalmologist and optometrists have been asking for, easy to use, lightweight, and best of all, economical. It is easy to use by the ophthalmologist and optometrists with less adjustment needed to obtain a proper and comfortable fit onto your patient. The lightweight alumin construction will ensure many years of use.
