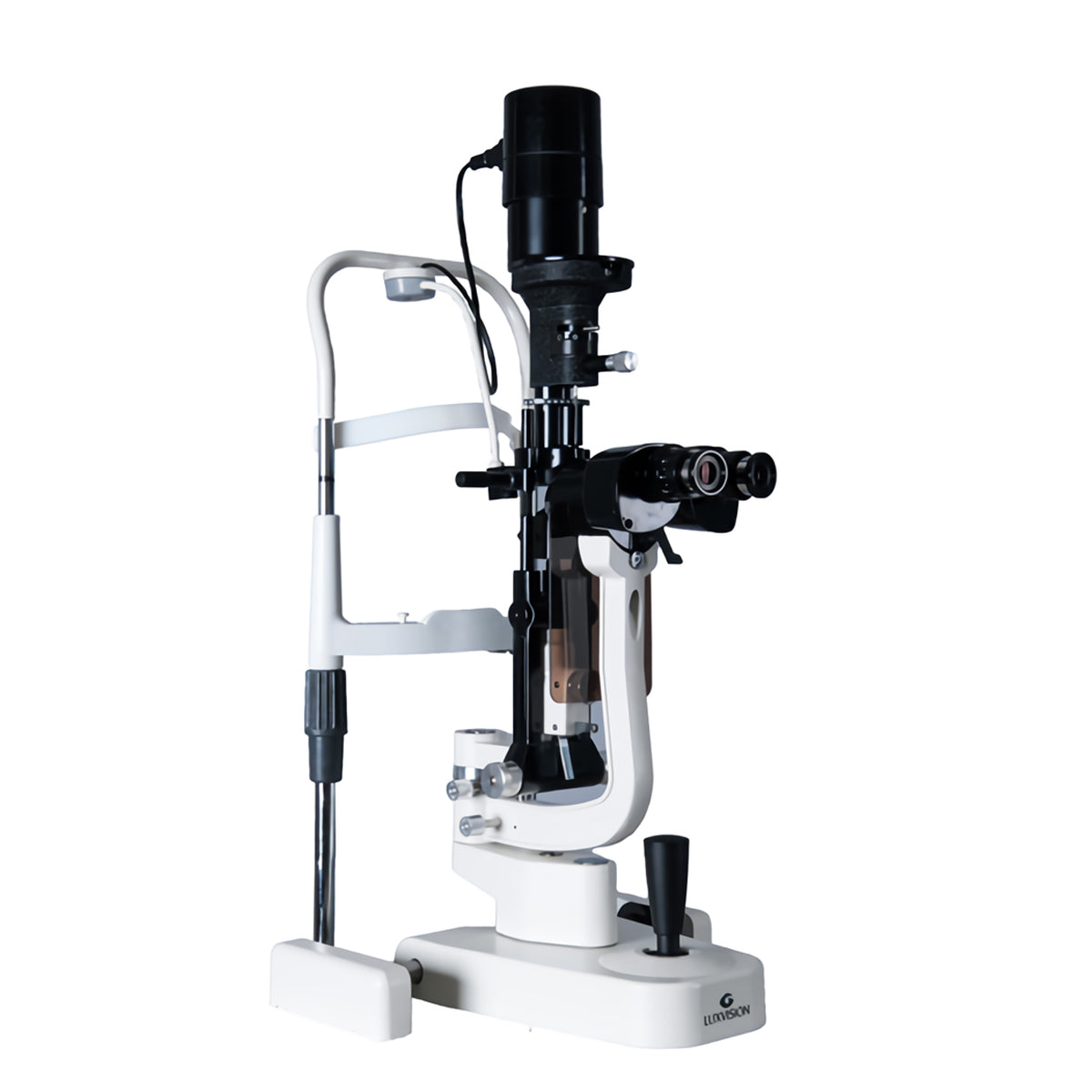

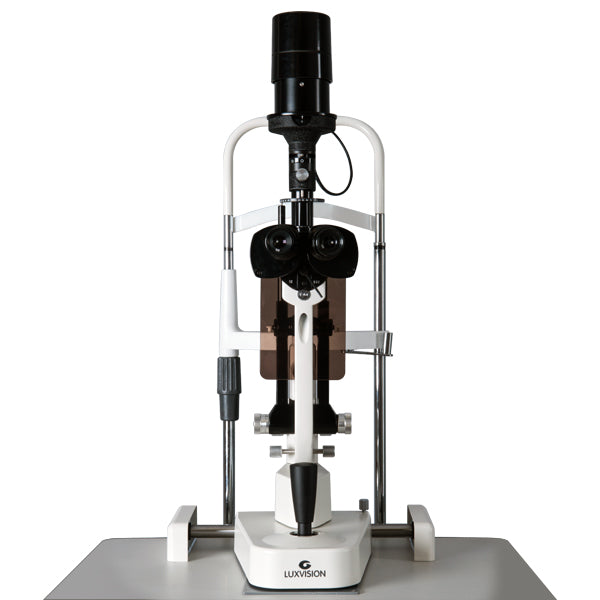

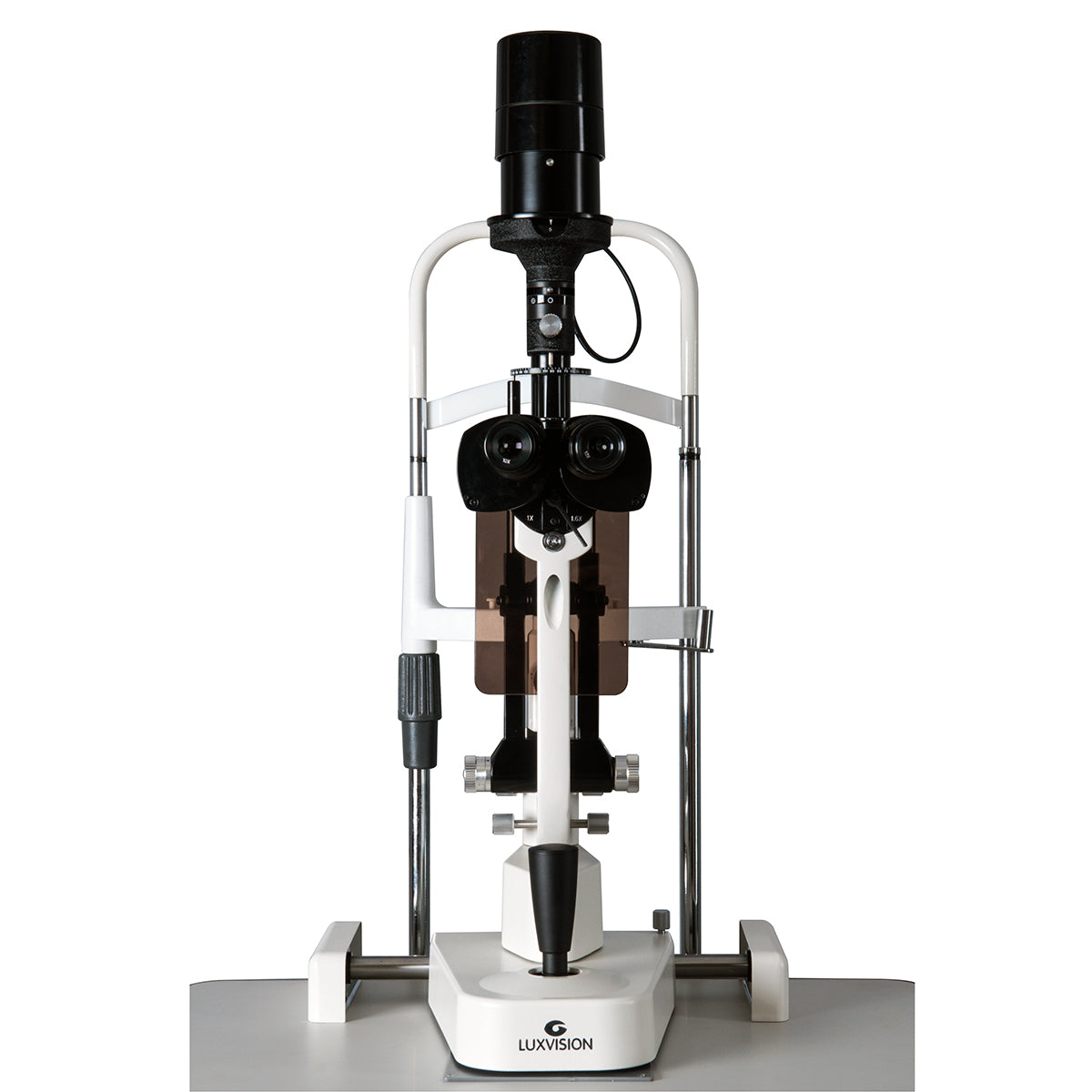

SL-1100 Slit Lamp

SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp
Click image to zoom
SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp
SL-1100 Slit Lamp

SL-1100 Slit Lamp

login to view price
SKU: SL-1100

Type
(Not available)

Short Description


slit lamp sl-1100 luxvision - us ophthalmic

 Cross-Angle Stereovision Optics
Luxvision's SL-1100 features tower illumination with an advanced Cross-Angle Stereovision Optical System. The unit offers two eyepieces (10x and 16x) and two-step magnification (1x to 1.6x).

slit lamp sl-1100 luxvision - us ophthalmic

 Two-Step Magnification
Advanced optics in the SL-1100 offer a two-step magnification that can be easily changed throughout the exam between 1x to 1.6x, using the instrument’s conveniently located lever. Final magnification ratios are equivalent to 10x (Ø18mm) and 16x (Ø14.5mm) with the 10x eyepiece, and 16x (Ø11.25mm) and 25.6x (Ø9mm) with the 16x eyepiece. Fine adjustments can also be made to the PD and optical correction.

Two Fixation Target Options
The SL-1100 offers two options with respect to fixation target. One is for diopter adjustment to help the patient to see the target clearly while the other is an illuminated fixed spot. The fixation target with diopter compensation supplies a dot and concentric circles target. Operators simply slide the knob to adjust the diopter compensation within the range from -15D to +10D. The fixation target with spot light is especially well suited to patients with refractive errors exceeding -15D.


slit lamp sl-1100 luxvision - us ophthalmic

 Wide Field of View with a Range of PD and Diopter Adjustment
Luxvision’s SL-1100 Cross-Angle Stereovision Microscope offers a wide field of view of Ø18mm, Ø14mm, Ø11.25mm, and Ø9mm, with a 51mm-82mm range of PD adjustment, depending on which eyepiece the operator selects. Diopter can be adjusted to ±8D with the 10x eyepiece.

slit lamp sl-1100 luxvision - us ophthalmic

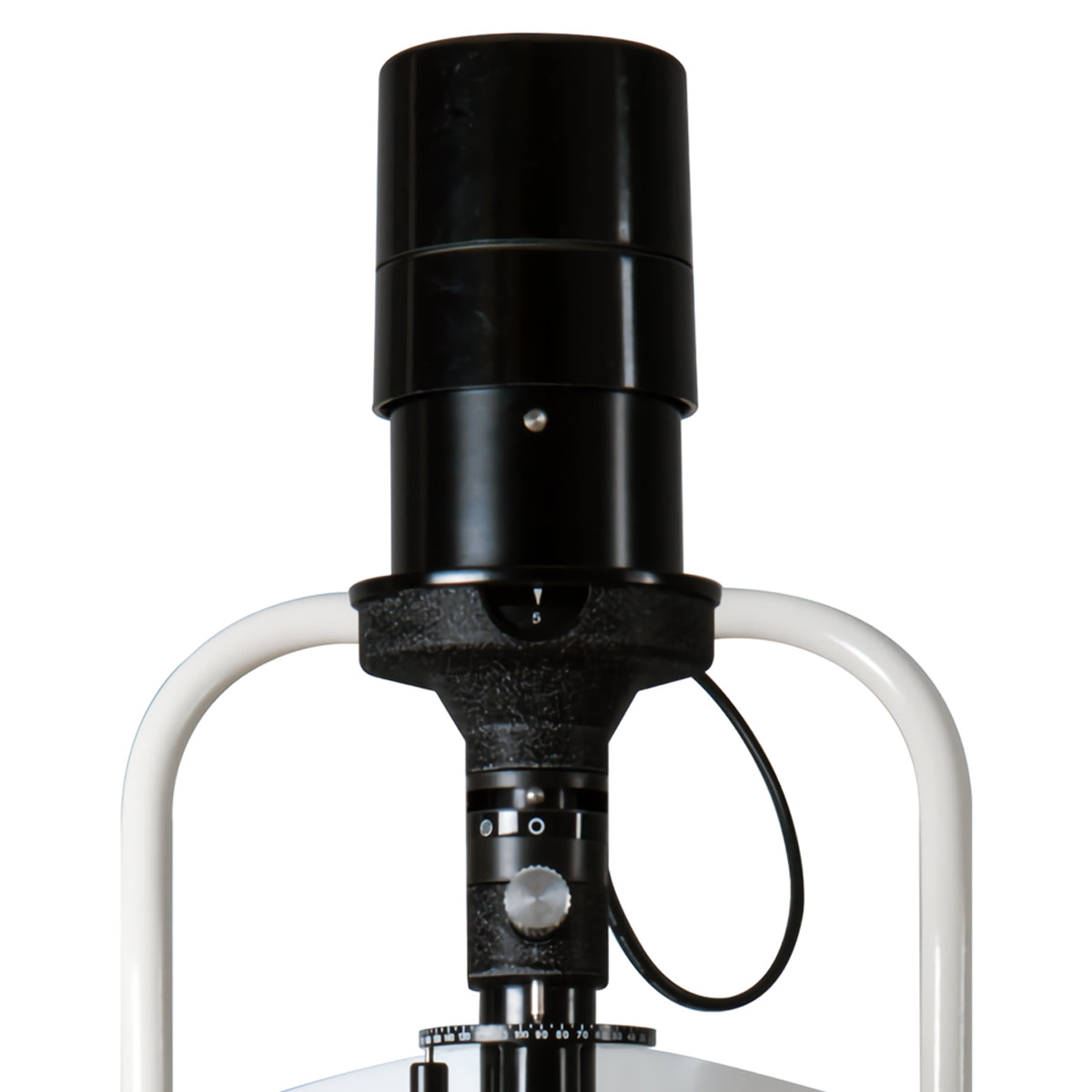

 High Clarity Luminance and Built-in Filters
The SL-1100 utilizes a 12-volt, 30-watt high luminance halogen bulb to provide bright illumination and outstanding clarity. By shifting the unit’s filter selection lever, you can easily select from four built-in Illumination Pathway Filters. Options include a heat absorption filter that aids in patient comfort during lengthy exams, a red-free filter that enhances structural contrast, a cobalt blue filter for use in fluorescein assessment, and a grey filter. When indirect retro-illumination is needed, you can easily deflect the illumination light using the unit’s well-placed controls.

slit lamp sl-1100 luxvision - us ophthalmic
Fundus Observation
Unlike standard slit lamp units Luxvision's SL-1100 also allows for a dilated examination of the fundus and the posterior segment of the vitreous body using a Hruby Lens with the unit’s Hruby Lens Holder and Hruby Lens Guide Plate.

slit lamp sl-1100 luxvision - us ophthalmic
Continuous Slit Rotation and Aperture Adjustment
The SL-1100 features 2/3x slit projection magnification and enables users to modify slit width continuously from 0mm to 9mm using an easy-to-adjust knob. The slit becomes a circle at 9mm. A simple turn of the aperture and slit height control knob reveals that six different beams of light are available at full aperture: Ø9mm, Ø8mm, Ø5mm, Ø3mm, Ø1mm, and Ø0.2mm. The slit height, which is indicated in a display window, also can be changed continuously, from 1mm to 8mm. Using precise movements and controls, operators can swing the main body of the slit horizontally to revolve the slit image at any angle in the vertical or horizontal direction, from 0° to 180°.

. Another helpful scale indicated the angle of image rotation. Four steps of slit inclination—5°, 10°, 15°, 20° — also are available for oblique illumination in contact lens evaluations.


slit lamp sl-1100 luxvision - us ophthalmic
Ergonomic Design Delivers Comfort and Control
The SL-1100 makes it simple to capture the necessary views. All of the unit’s knobs, dials and controls are ergonomically designed with comfort and efficiency in mind. Rheostat-based adjustable illumination offers brightness control.

slit lamp sl-1100 luxvision - us ophthalmic

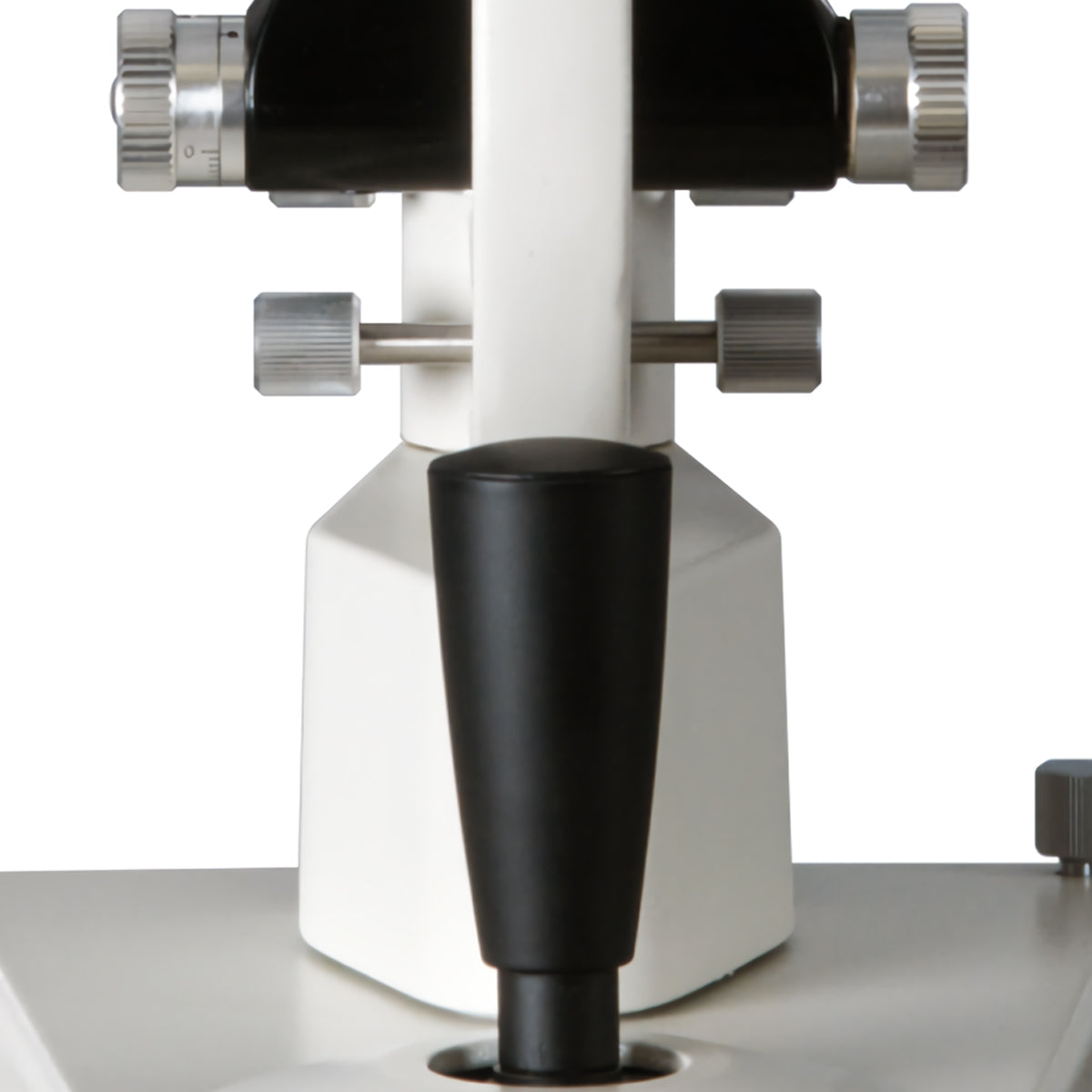

 Multidirectional Joystick
Maneuver the SL-1100 with ease using the intuitive multidirectional joystick. Precision adjustments are at your fingertips by simply turning and tilting the joystick. The base operation of the SL-1100 offers the following movements: forward and back movement to 90mm; left and right movement to 100mm, fine movement to15mm and vertical movement to 30mm. Once you achieve the proper alignment, the base can be locked to prevent sliding.

slit lamp sl-1100 luxvision - us ophthalmic

 Optional Accessories
Luxvision's SL-1100 slit lamp can be equipped with the TN-150 / TN-150B applanation tonometer or the Haag-Streit AG Model R-900 or Model T-900 applanation tonometer for measuring intraocular pressure. The unit comes standard with a 16x eyepiece. A 10x eyepiece is optional.
Microscope
Type Cross-Angle Stereovision
Model of Magnifying Change the objective for 2 grades magnification
Eyepiece 10x
Total Magnification
Objective x Eyepiece = Magnification Rate / Vision Field
1x 10x 10x 18mm
1.6x 10x 16x 14.5mm
1x 10x 16x 11.25mm
1.6x 16x 25.6x 9mm
Range of P.D. Adjustment 10x eyepiece 55mm to 82mm
Diopter Adjustment 10x eyepiece ±8D
Illumination
Slit Projection Magnification 2/3x
Slit Width continuous from 0mm/0in to 9mm
(at 9mm, slit becomes a circle)
Slit Height continuous from 1 to 8mm
Aperture Diameter ø9mm,ø8mm,ø5mm,ø3mm,ø2mm,ø1mm,ø0.2mm
Slit Angle 0º to 180º with horizontal scanning capability
Slit Inclination 5º,10º,15º,20º four steps
Filter Piece Heat-Hbsorption, 13%ND, Red-Free and Blue
Illumination Bulb 12V30W Halogen Hulb
Movement Base
Fore and Back Bovement 90mm
Left and Right Bovement 100mm
Fine Movement 15mm
Vertical Movement 30mm
Chin-rest Parts
Vertical Movement 80mm
Fixation Target Red-LED
Power Source
Input Voltage 100/220V +10%
Input Frequency 50/60 Hz
Input Power 58VA
Output Voltage Illumination Bulb 7.2V, 9.8V, 11.6V
Fixation Target 7.2V
Electric Safe Standard Conform to Standard IEC601 - 1, Class I Type B
Dimension and weight
Packing Box 720 x 495 x 480mm
Total Weight 24 Kg
Net Weight 21 Kg
Click here to see the manual


Click here to see the brochure


USO

Manufacturer: USO

Manufacturer SKU: SL-1100

Luxvision SL-1100 Slit Lamp Microscope. Tower illumination tilting. Stereoscopic optical system. Two magnifications 10x and 16x and includes 16x eyepiece delivering 16x and 25x capabilities. Smart design and a long list of features make Luxvision's SL-1100 Cross-Angle Stereovision Microscope an excellent fit for any practice. Well-placed controls and two-step magnification can be easily changed between 1x and 1.6x, using a conveniently located lever. Two available eyepieces (10x and 16x) offer even greater flexibility when examining ocular structures. A high luminance halogen lamp provides incredible clarity in any of seven available aperture diameters. The SL-1100 includes a Hruby Lens Kit for performing fundus exams and can also be equipped with an applanation tonometer. Two reflecting mirrors, a tilt mechanism, four illumination filters and more are among the many added features you'll enjoy when selecting the well-equipped SL-1100.
