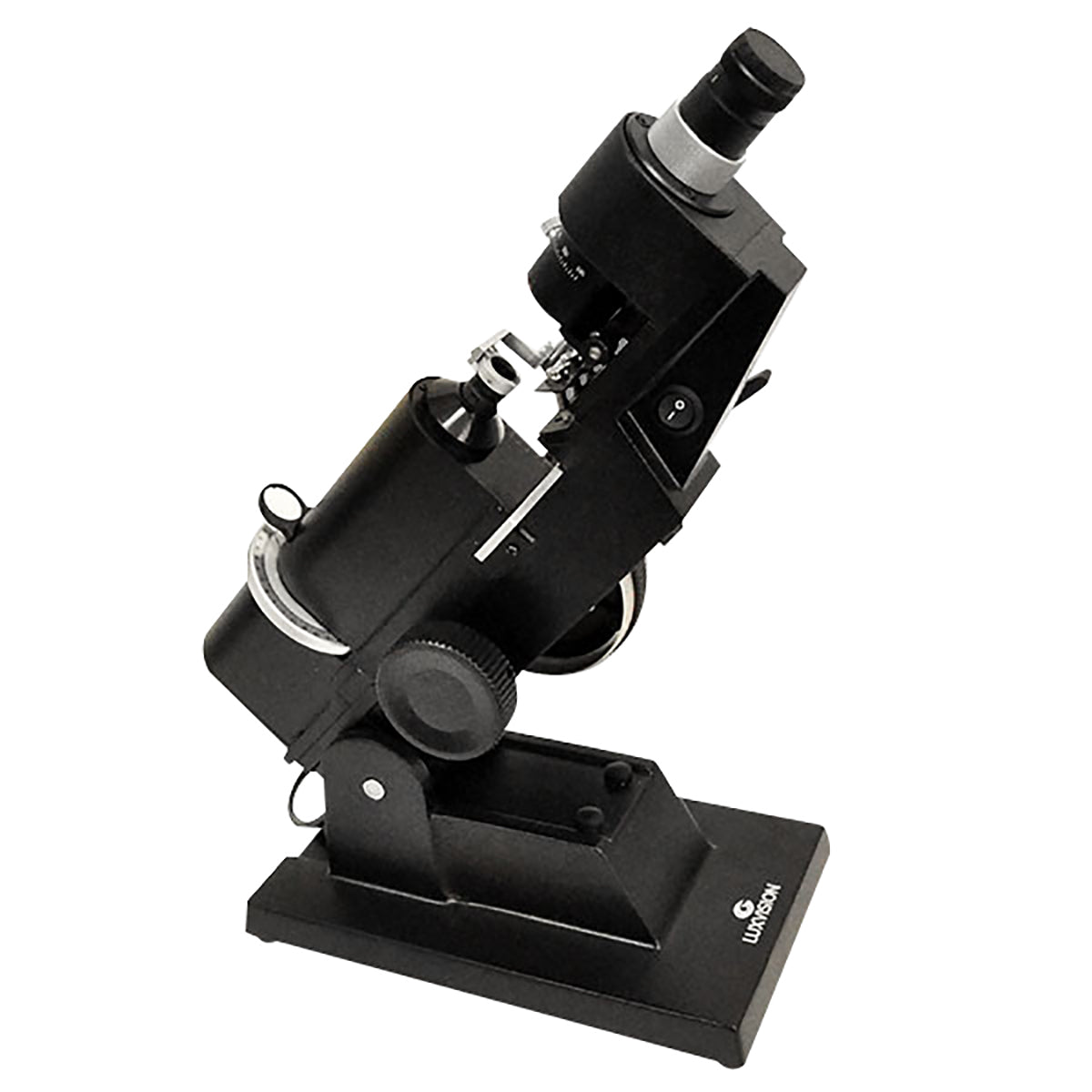

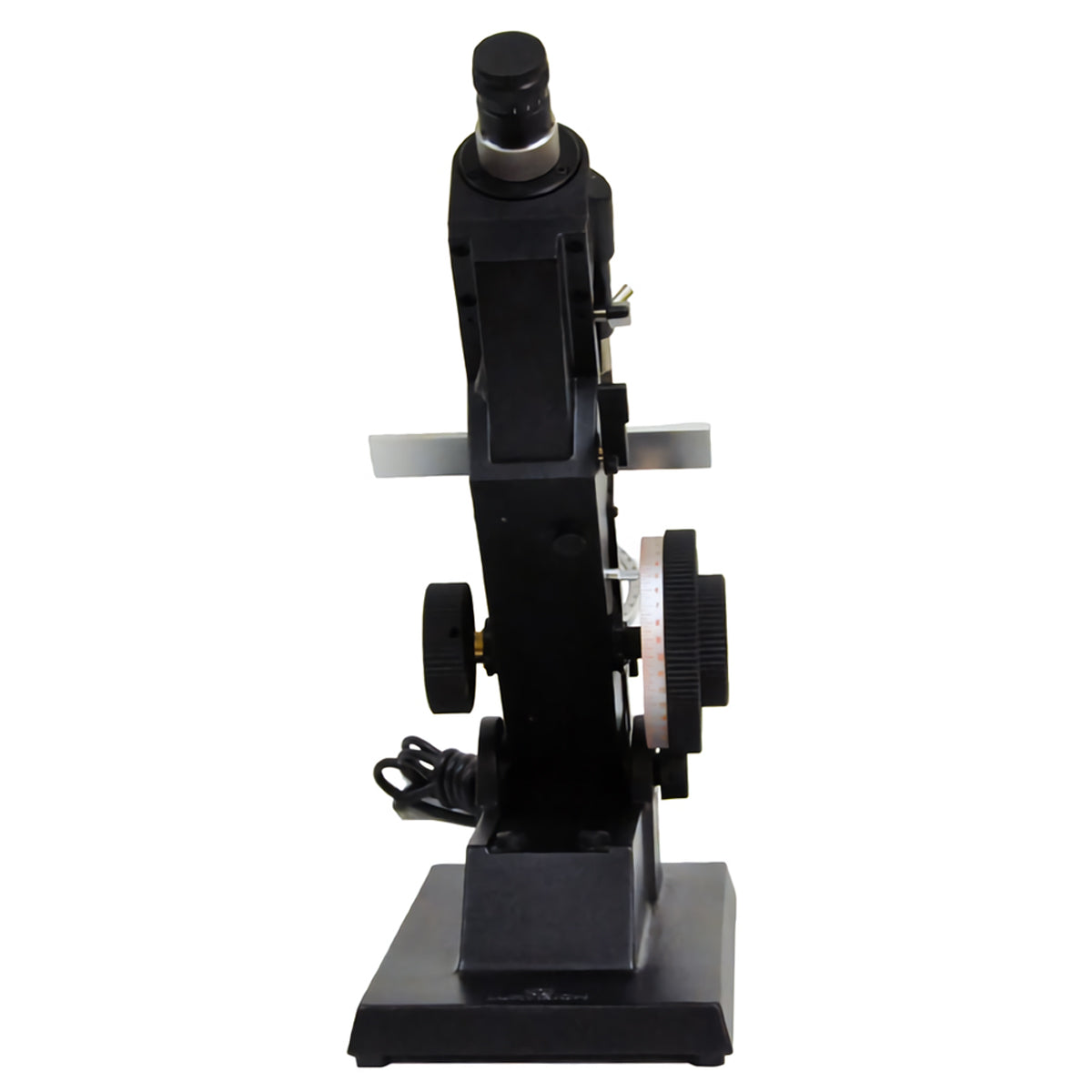

LM-700 Manual Lensmeter with External Readings

LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings
Click image to zoom
LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings
LM-700 Manual Lensmeter with External Readings

LM-700 Manual Lensmeter with External Readings

login to view price
SKU: LM-700

Color
(Not available)

Short Description


Lensmeter LM-700 Luxvision - US Ophthalmic

Lensmeter LM-700 Luxvision - US Ophthalmic
 Contact Lens Measurement
Luxvision’s compact, deluxe LM-700 is unique in it’s ability to measure hard and soft contact lenses as well as spectacle lenses.

Lensmeter LM-700 Luxvision - US Ophthalmic

 Oversized Lens Table
The LM-700 features an oversized lens table that allows you to measure conventional lenses from 30 to 90 millimeters in diameter.

Lensmeter LM-700 Luxvision - US Ophthalmic
 American-Style Cross Line Target
With the Luxvision LM-700 you can comfortably measure spherical, cylindrical and prism powers with accuracy and ease. This model uses the popular American-Style Cross Line Target.

* The target can be viewed in amber and green hues.

Lensmeter LM-700 Luxvision - US Ophthalmic
 90-Degree Inclination
You and your technicians can easily regulate the instrument’s degree of inclination, allowing everyone in the office to work at his or her most comfortable posture. This model offers a full 90-degrees of tilt.

Lensmeter LM-700 Luxvision - US Ophthalmic

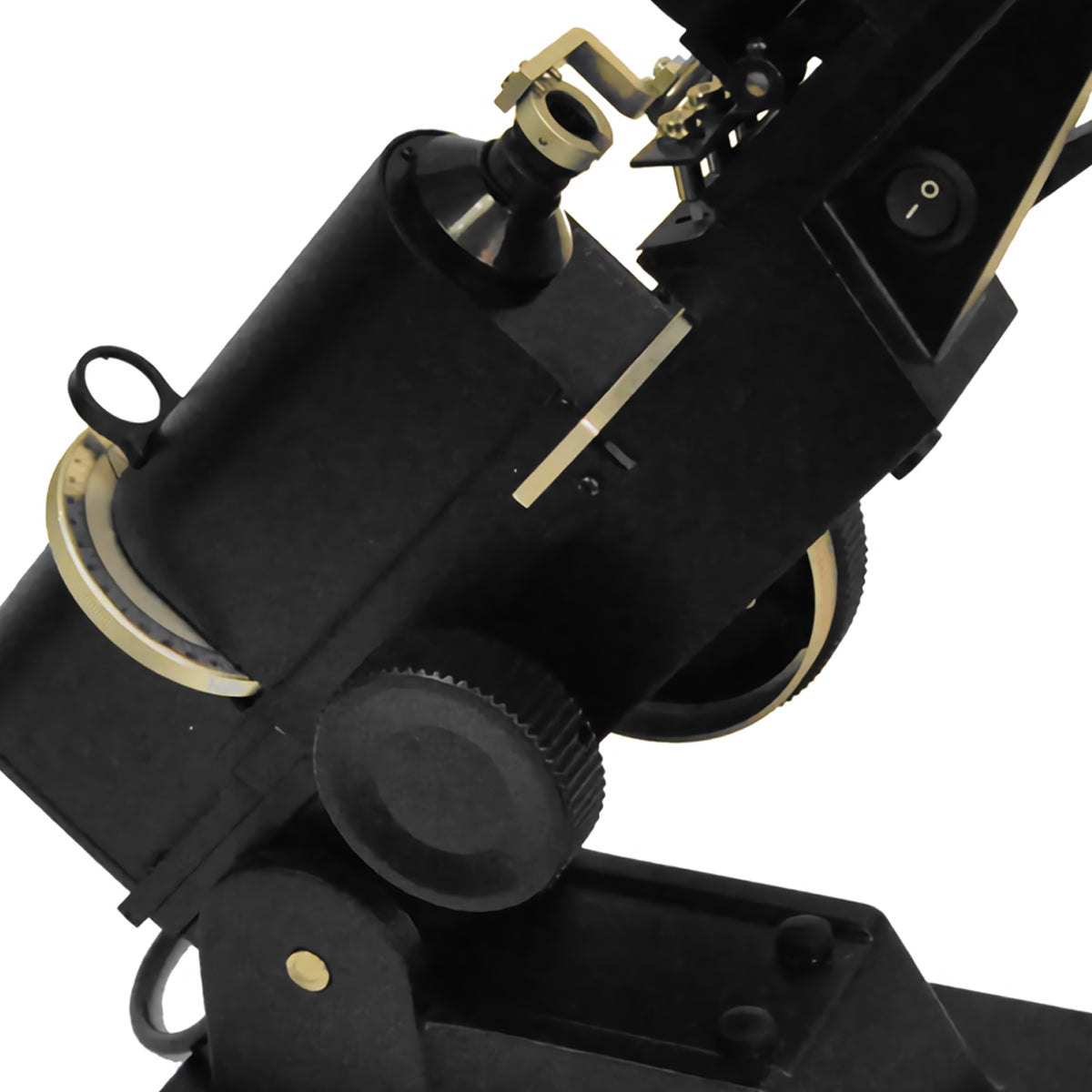

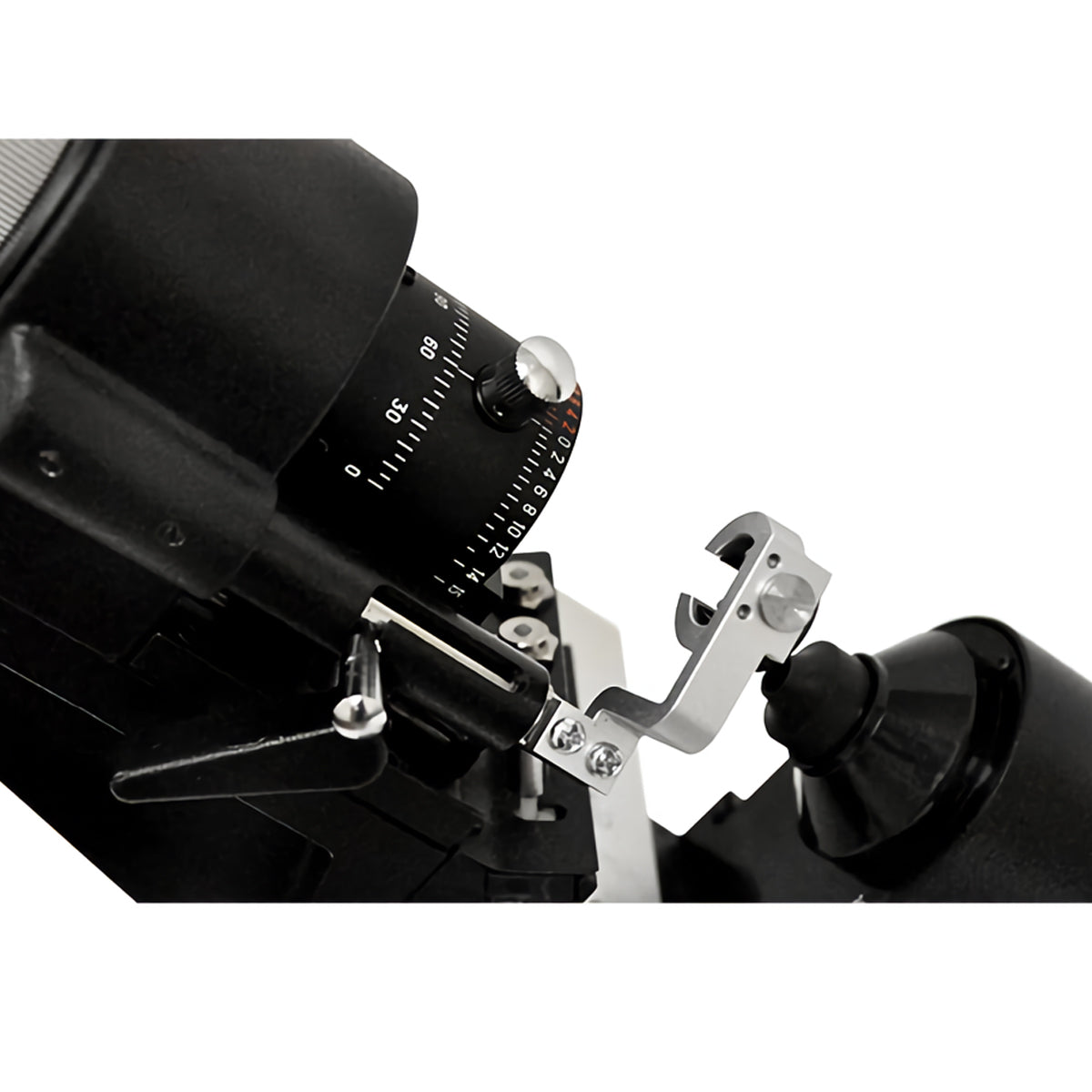

 Prism Compensator
This Luxvision model enables operators to neutralize prism power with an integrated prism compensator. Use the prism compensating device to inspect lenses with a high degree of prism correction.

Lensmeter LM-700 Luxvision - US Ophthalmic
 Outstanding Eyepiece System
A lensmeter’s eyepiece plays an important role in the accuracy of your readings. The LM-700 is manufactured at the highest standards and offers a range of ±5D to accommodate operator needs.

Lensmeter LM-700 Luxvision - US Ophthalmic
 Halogen Illumination
The LM-700 features outstanding halogen illumination for glare-free viewing and fatigue-free operation.
Type Ocular type; external reading
Target American Cross-line
Vertex Power Range: +20 to -20 diopters
Step: 0.125 diopters up to ± 3 diopters
0.25 diopters beyond ± 3 diopters
Cylindrical Axis Range: 5 prism diopters in a viewfield
Step: 1 degree
Prismatic Power Range: 5 prism diopters in a viewfield
(20 prism diopters by prism compensator)
Step: 1 prism diopter
Eyepiece Focusing ±5 to -5 diopters
Diameter of Lenses Accommodated 1.2 to 3.6in (30 to 90mm)
Lamp AC 100V to 120V; 25V
Tilting Angle 0 to 90 degrees
Dimensions At 0 degrees: 6.7in (W) x 17.7in (D) x 8.8in (H) (170mm (W) x 450mm (D) x 224mm (H))
At 90 degrees: 6.7in (W) x 13.5in (D) x 18.5in(H) (170mm (W) x 342mm (D) x 470mm(H))
Weight Approximately 6.3 kg / 14 lbs

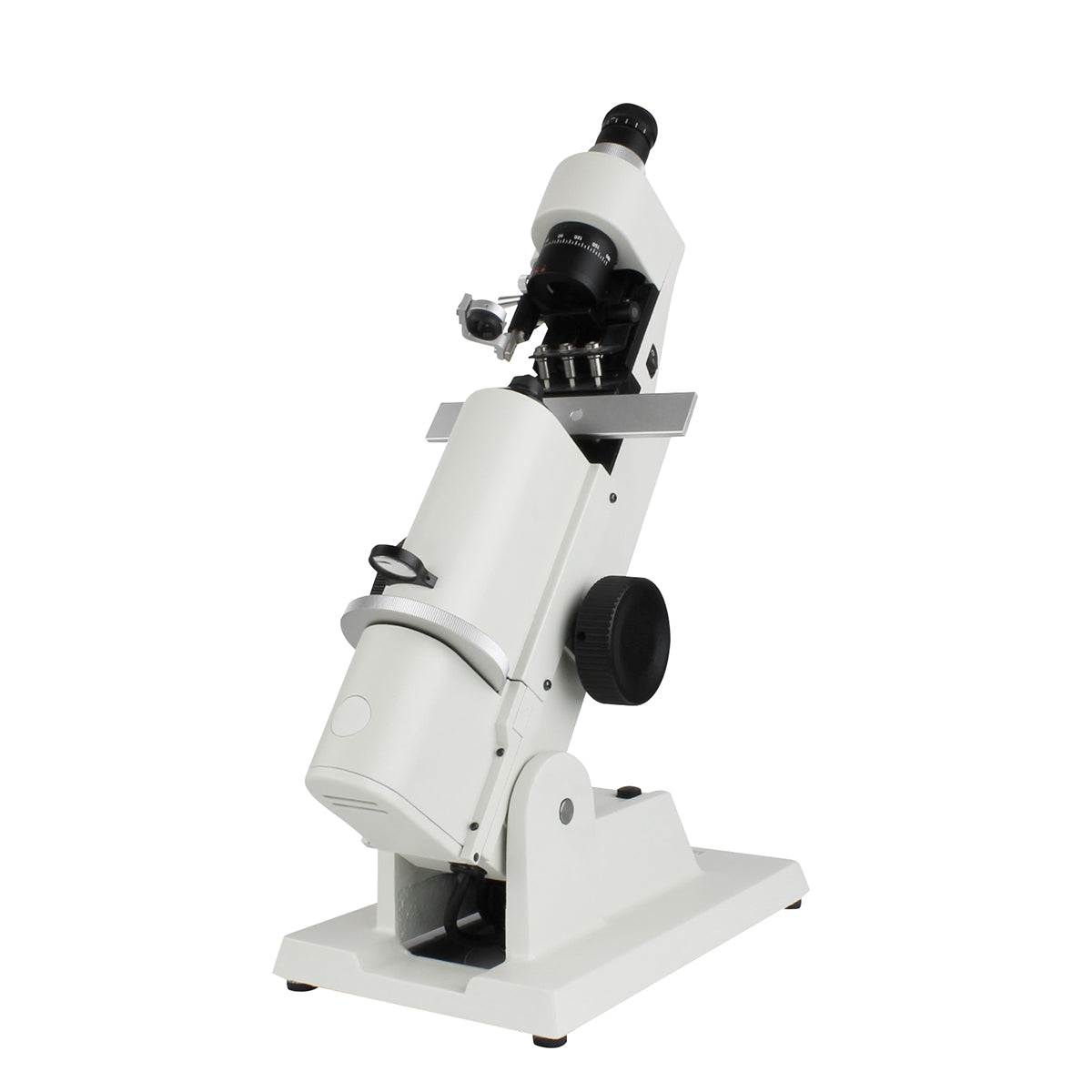

Color/Finish Black or White
Light Source Halogen
Click here to see the manual


Click here to see the brochure


USO

Manufacturer: USO

Manufacturer SKU: LM-700

The Luxvision LM-700 Manual Lensmeter compact deluxe model is capable of measuring soft and hard contact lenses as well as conventional spectacle lenses. The LM-700 is Luxvision’s compact, deluxe model Manual Lensmeter. One of the many features that set this model apart is its ability to measure hard and soft contact lenses as well as spectacle lenses. In addition, this model offers an oversized lens table that allows you to measure conventional lenses from 30 to 90 millimeters in diameter. The LM-700 provides the reading of the power on the outside of the unit and features outstanding halogen illumination. The ability to perform manual lensometry is essential in every eye care practice, laboratory and dispensary. Thanks to the Luxvision LM-700, you can now comfortably measure spherical, cylindrical and prism powers with accuracy and ease.
