SKU: LM-200

Type
(Not available)

Short Description


Lensmeter LM-200 Luxvision - US Ophthalmic

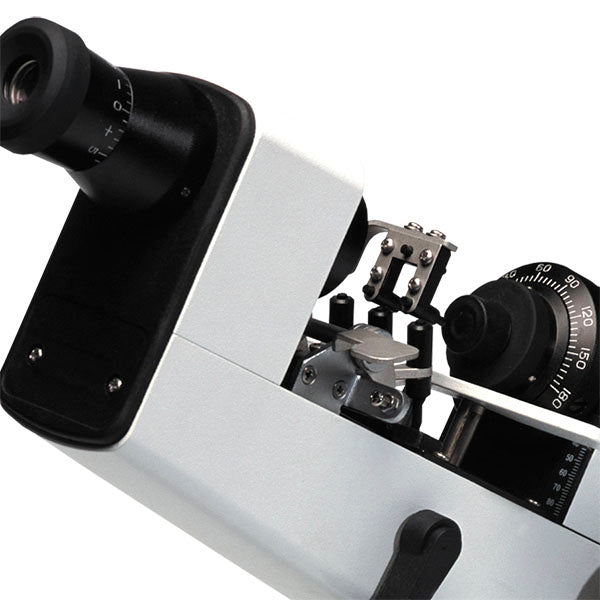

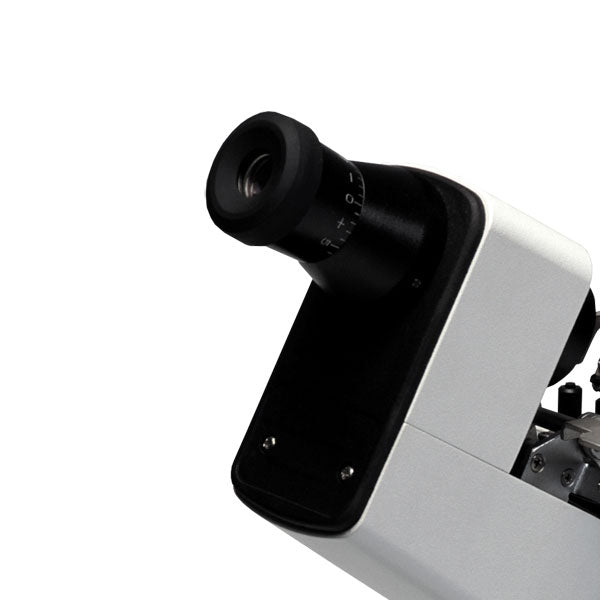

 Advanced Eyepiece System
A lensmeter’s eyepiece plays an important role in the accuracy of your readings. The spiral focusing unit on the LM-200 is manufactured at the highest standards and offers a range of ±5D to accommodate operator needs.

Lensmeter LM-200 Luxvision - US Ophthalmic

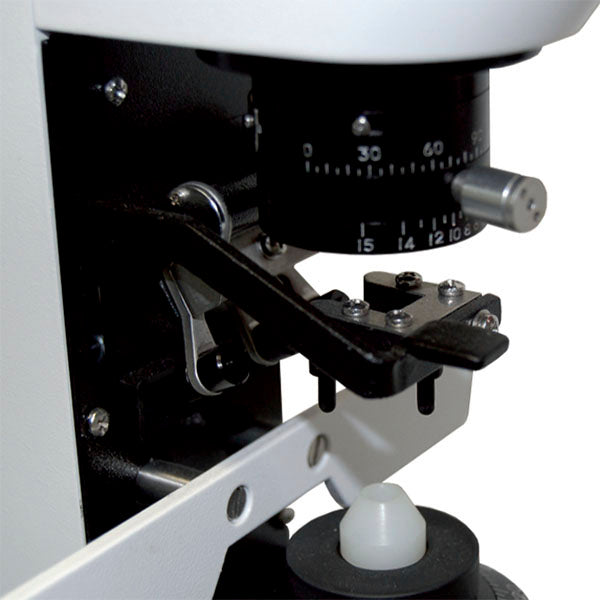

 Gentle Lens Pressing Unit
Worry less about lens damage with the LM-200. The unit features three plastic feet and a carefully designed spring system that makes it much easier to adequately press the lens in place without breaking it. Once in place, simply lock the unit to begin measurement.

Lensmeter LM-200 Luxvision - US Ophthalmic

 Prism Compensator
This Luxvision model enables operators to neutralize prism power with an integrated prism compensator. Use the prism compensating device to inspect lenses with a high degree of prism correction.

Lensmeter LM-200 Luxvision - US Ophthalmic

 Enhanced Lens Marking
The LM-200 features three pens to spot the lens at the optical center or prism reference point, or for otherwise marking the lenses as needed.

Lensmeter LM-200 Luxvision - US Ophthalmic

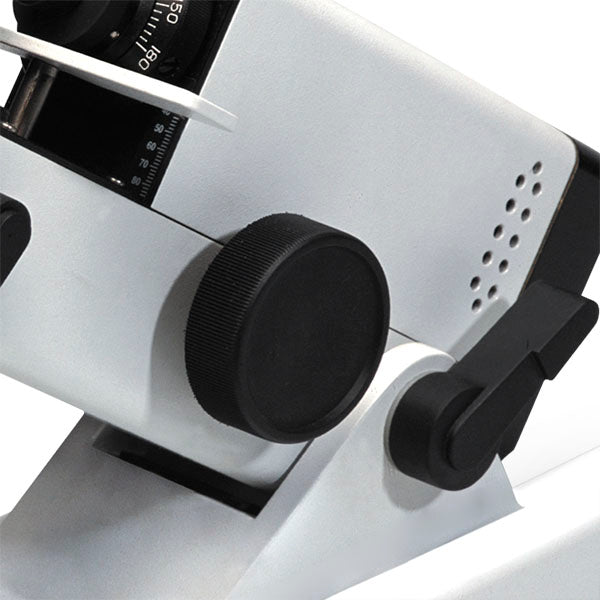

 Ergonomic Inclination Control
You and your technicians can easily regulate the instrument’s degree of inclination, allowing everyone in the office to work at his or her most comfortable posture.
Ranges of Diopter Measurement 0 ~ ±25D
Minimum Scale Value 0.125D at 0 ~ +5D
0.25D at ±5D ~ ±25D
Astigmatism Axis of Cylindric Lenses 0~180°
Minimum Scale Value 1°
Prism Diopter Standard Model 0 ~ 5Δ
Minimum Scale Value 1Δ
*Strengthened Model 0 ~ 20Δ
*Minimum Scale Value 1Δ
Prism Base Angle 0-180°
Minimum Scale Value 1°
Regulation of Ocular Visibility ±5D
Size of Lens Φ0.63in ~ Φ0.70in (Φ16mm ~ Φ18mm)
Overall Dimensions of Device 10.8 x 5.12 x 18 in (275 x 130 x 455 mm)
Weight Standard Model 12.32 lb (5.6 Kg)
Strengthend Model 12.54 lb (5.7 Kg)
Light Source LED
Lighting Lamp 220V / 110V 15W
Designs and details can be changed without prior notice for the purposes of improvement
Click here to see the manual


USO

Manufacturer: USO

Manufacturer SKU: LM-200

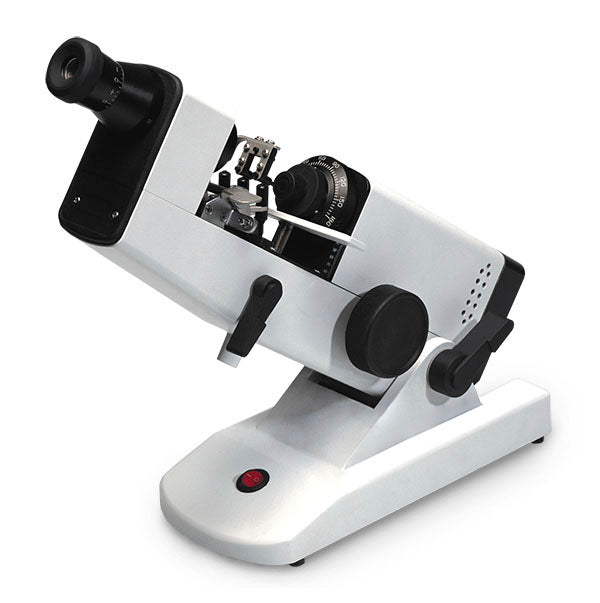

Luxvision LM-200 Manual Lensmeter with Internal Reading. The ability to perform manual lensometry is essential in every eye care practice, laboratory and dispensary. With the Luxvision LM-200, you will be able to comfortably measure spherical, cylindrical and prism powers with unparalleled accuracy. This model features internal readings as well as a prism compensator. An enhanced lens marking device, a gentle lens pressing unit, inclination control and more combine to make the LM-200 an excellent choice.
