GR-BIO2100 Binocular Indirect Ophthalmoscope

Click image to zoom
GR-BIO2100 Binocular Indirect Ophthalmoscope
GR-BIO2100 Binocular Indirect Ophthalmoscope
GR-BIO2100 Binocular Indirect Ophthalmoscope
GR-BIO2100 Binocular Indirect Ophthalmoscope
GR-BIO2100 Binocular Indirect Ophthalmoscope
GR-BIO2100 Binocular Indirect Ophthalmoscope
GR-BIO2100 Binocular Indirect Ophthalmoscope

GR-BIO2100 Binocular Indirect Ophthalmoscope

login to view price
SKU: GR-BIO2100

(Not available)

Short Description



Binocular Indirect Ophthalmoscope gr-bio2100 us ophthalmic
Improved Comfort

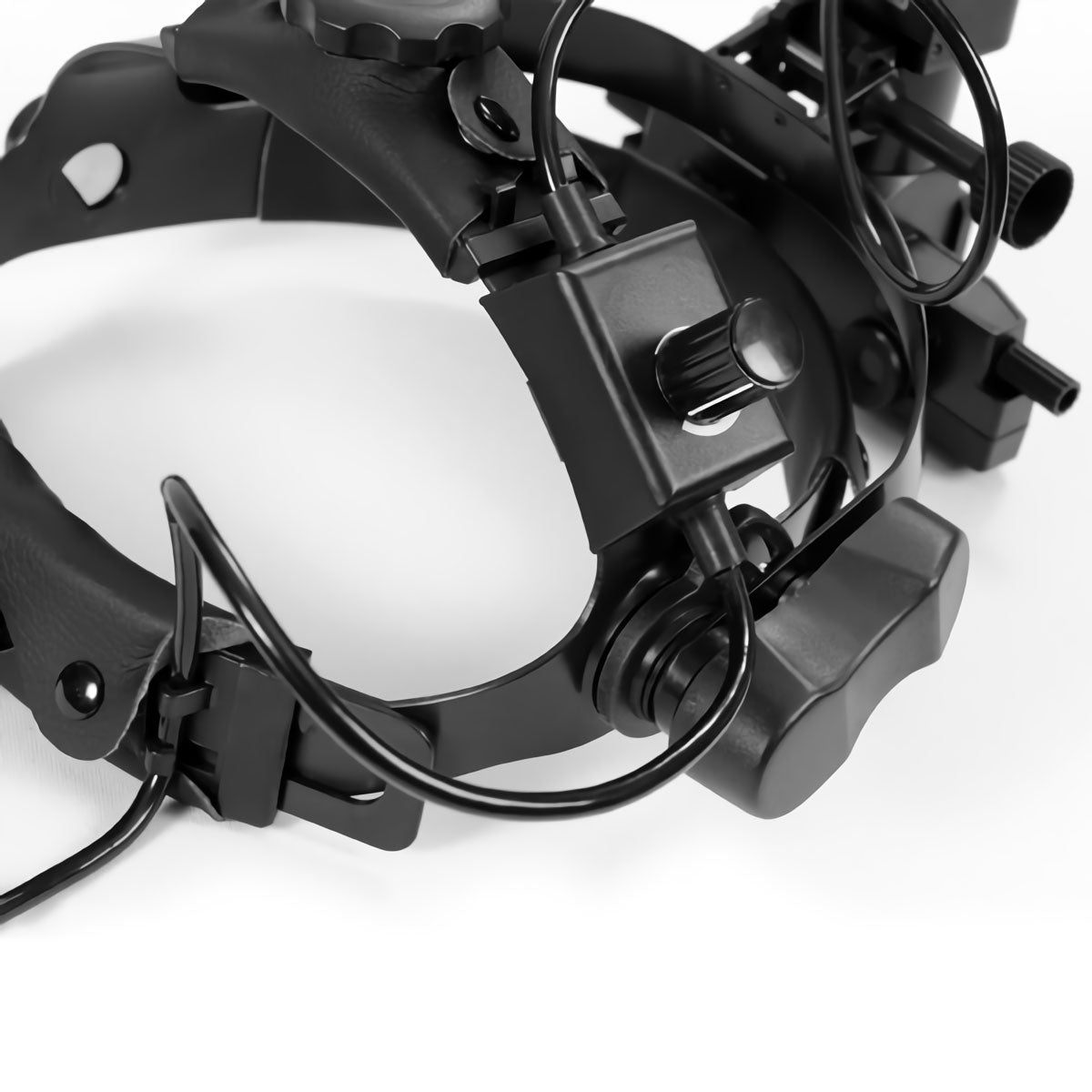

The GR-BIO2100 is extremely compact and lightweight, providing exceptional wearing comfort and support. It also features extra padding along the head-band and crown-band, both of which are adjustable.

Binocular Indirect Ophthalmoscope gr-bio2100 us ophthalmic
Advanced Optical Design
The GR-BIO2100 features and advanced optical design that avoids glistening and provides an impressive, broad field.

Adjustable Interpupillary Distance
With the GR-BIO2100 can handle the widest and narrowest interpupillary distances. Observation paths can be adjusted from 52mm to 74mm to.


Video-Aligned Optical System
Users will benefit from a top-of-the-line Gilras video-aligned optical system that ensures precise positioning of components for easy viewing.

Binocular Indirect Ophthalmoscope gr-bio2100 us ophthalmic

Three Filters

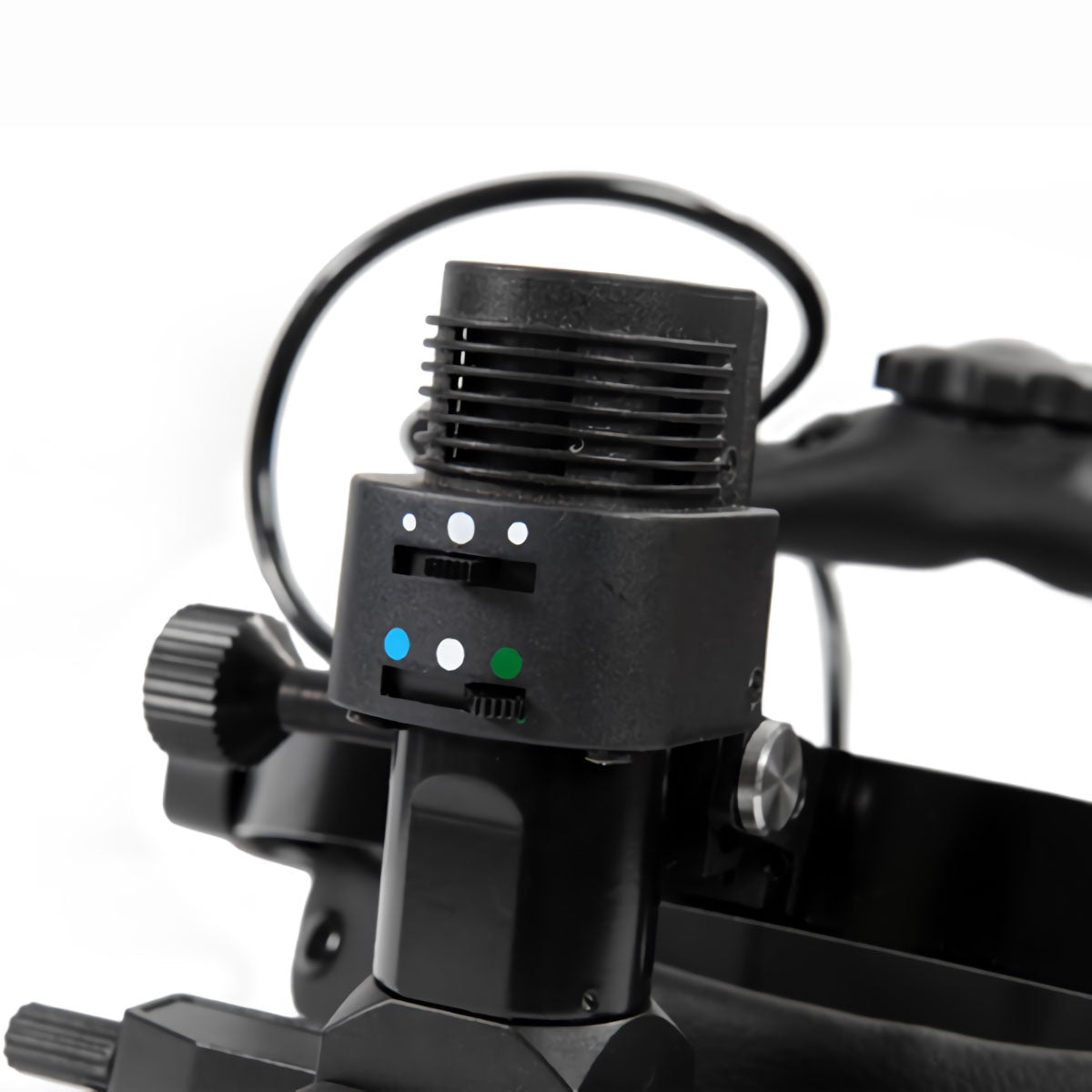

For added flexibility and refined exams, the GR-BIO2100 features three filters: red-free, colorless, and cobalt blue.


Illumination Intensity Control
Enjoy complete control with the GR-BIO2100. Brightness levels are completely adjustable according to need and preference.

Type Head-worn binocular non-contact ophthalmoscope
Working Distance 50.5mm (from the patient's corneal to the aspheric lens)
Pupillary Distance Adjustable from 2.05-2.91in (52-74mm)
Visual Angle 45° ± 5°
Intensity of Illumination Stepless adjustable with the maximum intensity not less than 200Lx
Lathe-hedd 20.87-24.80in (530-630mm) in circumference, 3.35-4.92in (85-125mm) in depth
Light Spots Three spots, big, middle and small
Filters Three filters including redfree, colourless and cobalt blue
Demonstrating Mirror Coated mirror with both sides viewing
Power Supply of illumination Mini halogen bulb 6V/10W
Input Power Supply (220V System) AC 220V, 230V, 240V
Input Power Supply (110V System) AC 110V, 120V
Input Power Frequency 50/60HZ
Input Power 20VA
Electric Safety Standard GB9706.1-1995 ClassⅡ, IPXO, Not AP or APG device
The Fuse Specification Input power supply(220Vsystem):T 100mAL 250V
Input power supply(110Vsystem):T 315mAL 250V
Net Weight ≤ 0.71lb / 0.32 kg (excluding the head frame)
Click here to see the manual


USO

Manufacturer: USO

Manufacturer SKU: GR-BIO2100

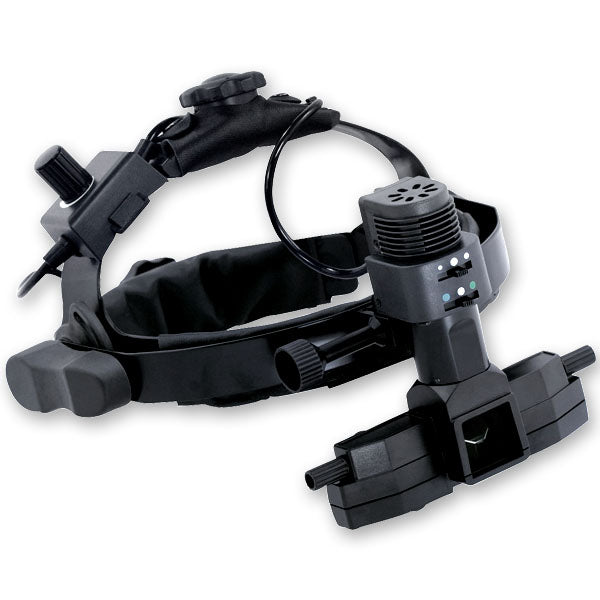

Examine large areas of the retina with the exceptionally well-designed GR-BIO2100. This Gilras Binocular Indirect Ophthalmoscope consists of a headband, an optical viewing system, and a controllable illumination source. It is also extremely compact and lightweight, providing exceptional wearing comfort and support. The GR-BIO2100 features a video-aligned optical system, three filters, broad interpupillary distance adjustment, illumination intensity control and more. It is an ideal choice for any practice.
